cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine

Get the best cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine from our factory. Efficient and reliable packaging solution. Contact us now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Products Details
  • Our Advantages
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
DPP-260R
Driven Type
Electric
Automatic Grade
Automatic
Structure
Section
Packaging Material
Alu-PVC, Alu-Alu
Packaging Type
Blisters
Usage
Blister Packing
Type
Blister Packing Machine
Capacity
10, 800 Plates/Hour
Blanking of Alu Alu
20-120 Times/Min
Standard Plate
80*57mm
Max. Shaping Dia. and Depth
250*160*15mm Max. Depth 26mm
Overall Size of Machine
3500*740*1680 mm(L*W*H)
Standard Travel Range
10-160 mm
Power Supply
380V/220V/50Hz or Customized
Servo Motor
Panasonic
Total Power
6 Kw
Applicable Industries
Food, Pharmaceutical, E-Cigarette, Cosmetic
Applicable Products
Capsule, Tablet, Pill Ect.
Power of Main Motor
1.5kw
Mold Cooling
Runing Water or Circulating Water
Vacuum
0.4MPa-0.6MPa
Weight
Net Weight 2600kg
Transport Package
Standard Export Wood Case
Specification
3500*740*1680 mm
Trademark
Richpacking
Origin
Guangzhou
HS Code
8422303090
Production Capacity
3670 Piece/Year

Packaging & Delivery

Package Size
350.00cm * 74.00cm * 168.00cm
Package Gross Weight
2600.000kg

Product Description



Product Description

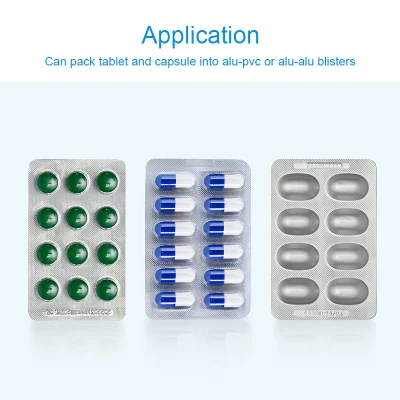

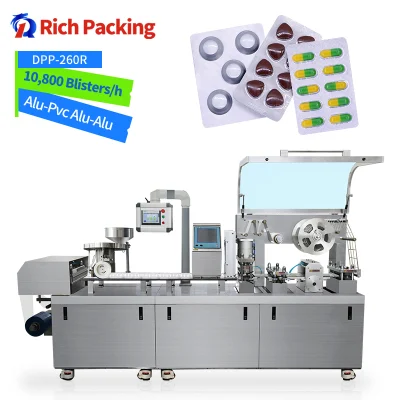

Pharmaceutical capsule blister packing machine newly developed by Guangdong RICHPACKING, driven by a servo motor, with better accuracy, more stable operation, and more convenient and quick adjustment. Tablet capsule blister packing machinery can pack tablets, milk tablets and other tablets, as well as large-sized materials such as capsules, candies, electronic cigarettes, disposable syringes and special-shaped objects, candies, big honey pills, injections, and vials.
This series of thermoforming machine blister is an aluminum-plastic/paper-plastic, aluminum-aluminum multi-purpose model, with fully automatic forming, feeding, sealing and servo traction functions. It meets GMP production requirements. It is a medium-sized model for pharmaceuticals, health products, chemicals, electronics, and food. Ideal product for mass production.

cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing MachinecGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine

Product Parameters

Production Capacity 10,800 blisters/h
Max. Shaping Dia. And Depth 250*160*15mm Max. Depth 26mm(custom-made)
Total Power 6.0kW
Power supply 380V/220V/50Hz(customized)
Standard Plate 80*57mm

Products Details

cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine

Our Advantages

Features
1.Adopt new type of servo motor roller pressing shaft traction  the traction accuracy is 0 error, the speed is fast, and the packaging material does not retreat when stopped.
2. The forming, heat-sealing, indentation and cutting station cam adopts cast steel integrally formed floor-standing box body seat, which will never deform, the center of gravity of equipment operation is stable, and the adjustment of each station is light and accurate.
3. The pc blister packing machine adopts a large platform design. The power transmission and cam box are all built-in under the body, which is convenient for cleaning and maintenance after use.
4. PVC and PTP fragments stop and automatic alarm function, which reduces waste and greatly improves the efficiency of raw material utilization.

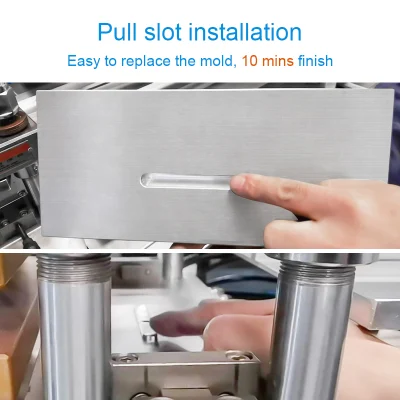

5. Mould modular design, pull-out card slot quick-connect installation, easy and fast to change the mould, the whole set of moulds can be installed in 10 minutes.
6. The forming, heat-sealing and cutting stations are fixed by the cam box mandrel, with a unified horizontal positioning reference and adjustment scale, which is convenient for customers to adjust the alignment.

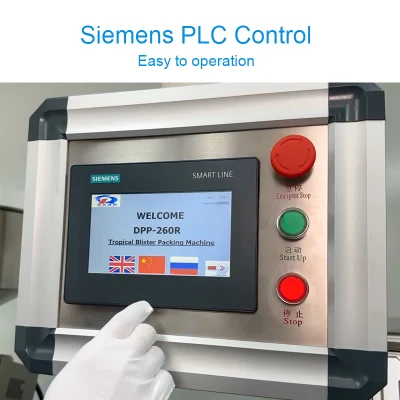

7. Thermoforming blister capsule machine has all the data programmed, PLC control, frequency conversion speed control, Siemens touch screen operation, higher accuracy, better integration, and simpler operation.
8. Packing machine blister is equipped with blanking dislocation, photoelectric detection and automatic shutdown function to protect the mold and product.
9. The PVC feed is detected by photoelectricity and driven by a motor. The feeding amount is accurate, the traction pressure is reduced, and the overall running speed is faster.
10. The heat-sealing station adopts dual-cylinder and dual-axis linkage, with large and balanced pressure, good combination of PVC and aluminum foil, clear lines and no wrinkles.
11. Chain drive, low noise, less than <75dBA.


Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Make a machine layout for customers based on customers' factories.


After-sales service
1. Complete set technology file.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.

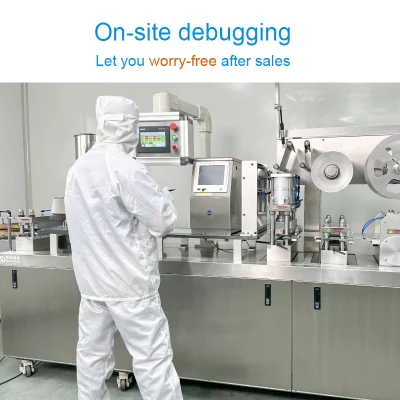

5. On-site debugging, 3 years warranty.



Certifications

cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine

Company Profile


cGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing MachinecGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing MachinecGMP High Speed Alu Alu PVC Roller Sealing Type Packaging Capsule Tablet Blister Packing Machine

FAQ

Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Guangzhou. We warmly welcome you to visit our factory if you have a travel plan.

Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. One year free parts. If there is any damage after opening the package, please contact us and we will send good accessories immediately. Of course, you have to take photos and videos. We have professional team with experienced technician to serve abroad door-to-door installation services can be provided, calculated at US$550/day.
