Basic Info.
Model NO.
Plus5L-S1500N
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Centralized Model
Brand
Aplus Power
Function
UPS+AVR

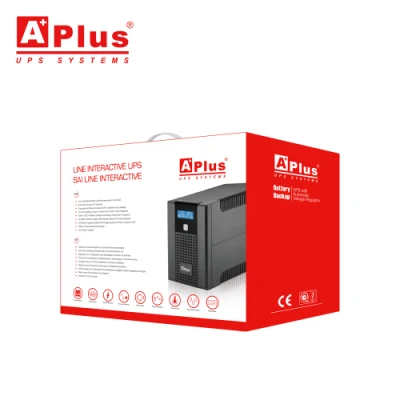

Transport Package
Ocean Freight
Specification
1500VA/900W
Origin
China
HS Code
8504402000
Production Capacity
2500 Pieces Per Day
Product Description




MODEL | Plus5L-S1500N |
CAPACITY | 1500VA/900W |
INPUT | |
Voltage | 110/115/120Vac |
Voltage Range | -30%, +25% |
Frequency | 50Hz or 60Hz (Auto-sensing) |
OUTPUT | |
Voltage Regulation | +/-10% |
Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz |
Waveform | Simulated Sinewave |
Transfer Time | <6ms (Typical) |

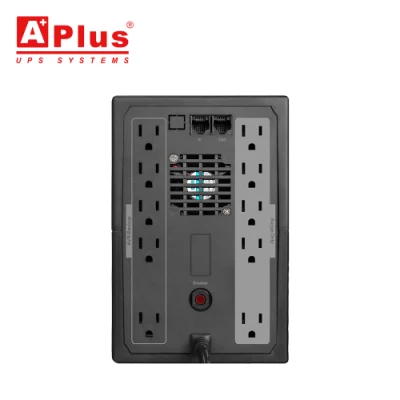

Outlet: Nema5-15R | 5pcs Backup/AVR/Surge protected + 5pcs Surge protected only |
Smart USB Charging | 2 ports, 5VDC 2.4A max. |
BATTERY | |
Type | Maintenance free sealed lead-acid battery |
Voltage | 24VDC |
Capacity & Number | 12V/9AH*2pcs |
Recharge Time | 5 hours to 90% after complete discharge |
Safety Protection | Over Charge & Over Discharge Protection |
Advanced Battery Management | Yes |
DISPLAY | |

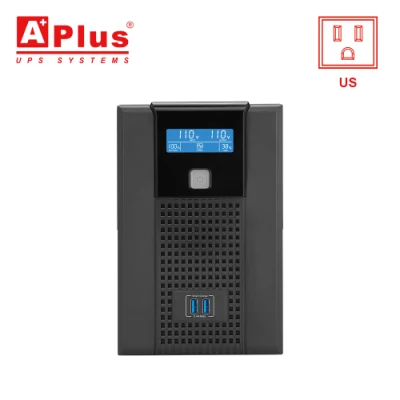

LCD Status Indicators | Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal |
AUDIBLE ALARM | |
Battery Mode | Two short tones every 8 seconds |
Low Battery | Four short tones every second |
Overload | Beeping continuously |
Fault | Beeping continuously |
ENVIRONMENT | |
Operating Temperature | 0°C-40°C (32°F-104°F) |
Humidity | 0-95% (Non-condensing) |
Acousitc Noise | <40dB at 1M |
PHYSICAL | |
Dimension (D*W*H) | 343*135*208mm |
