Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer

Introducing our factory's Best Price 1000L Vacuum Homogenizer for Face Cream, Emulsion, Ketchup, Chilli Paste, and Mayonnaise making machine. Quality guaranteed!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
ACE-RHG-A13
Certification
CE, ISO, GOST, SONCAP, CCC
Application Area
Chemical
Layout Type
Verticle
Mixing Drum Shape
Disc
Additional Capabilities
Milling, Heating, Filling
Operating type
Continuous Operating
Condition
New
Mixing Speed of Homogenizer
100-3000r.p.m
Heating Method
Electric or Steam
Structure
Single/Double Jacket/Three Layers
Be Suitable for
Liquid Soap etc
Speed Control
Stepless Speed Variation Device,Adjustable
Material
SUS304, SUS316, SUS316L
Voltage
380V/ 3pH / 50Hz or Customized
Jacket
Cooling and Heating Jacket Avaible
Motor Brand
Domestic/ABB/Siemens
Trademark
ACE
Origin
Wenzhou, Zhejiang, China
HS Code
479820090
Production Capacity
50sets Per Month

Product Description

Custom Made 50L- 10,000L, 20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products. Please contact us for the offer.

Product Description
Mixing tanks come in various sizes and can be used in a wide range of industries.
We are a manufacturer of stainless steel mixing tanks designed to fit your products and processes.


Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
Description:


This series is the most advanced blending equipment in fields  of Chemical, pharmaceutical, food, etc. When the high-speed super-fine emulsification paddle works, it throws the materials  in the center of rotor to stator at a high speed,then through tooth clearance of stator,and shearing,collision and crushing between rotor and stator,the super-fine emulsification is realized. therefore,it is an integrated  equipment comprising functions such as blending,emulsifying,homogenizing,solving and crushing.
Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
We can customize according to your drawings, or we can provide you with design drawings according to your requirements.

Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
Capacity&Characteristic of stainless steel mixing equipment
* Contact part : SUS316L or SUS304
* Function : heating, blending, homogenizing
* Mixing system : frame scraper agitator mixer and high shear homogenizer mixer
* Heating system : jacket heating / running water cooling
* Movable design and simple to operate
Applicable Products.
1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.
2. Daily chemical industry:Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry:Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry:Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry:Latex, Sauce, specified products, paints, coatings, resins, adhesives, lubricants and so on.


Configuration:
1. Quick opening manhole.
2. Various types of CIP cleaners.
3. Sanitary ventilation hood to defend against flies insects.
4. Adjustable triangular bracket.
5. Detachable feeding tubes.
6. Thermometer (According to the customer's requirements).
7. Ladder (According to the customer's requirements).
8. Advancing side blender
9. Level meter and level controller (According to the customer's requirements).
10. Anti-vortex plate.

Standard mixing tanks or tailor-made for your product and process
We understand that every mixing tank is different. Therefor, we design our tanks tailor-made for you, so you can be sure that the tank will suit to your product and process best.
Options we can include into your tank are:
* Tillable
*Fully integrated control panel
*Heated and/or cooled
*Agitators
*Load cells
*Level switches
*Cleaning options
*Skid mounted

Features:
1. Inner tank body, jacket and outer layer, with thermal insulation material filled in between.
2. Materials are all sanitary stainless steel.
3. User-friendly design ,easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Agitator design and fabrication:
In addition to tanks, We also make its own agitators. This way you have one point of contact for the entire tank concept. Agitators that we design and produce are:
*Gate agitator
*Anchor agitator
*Scraping agitator
*Propeller agitator
*Bottom driven agitator
*Dispersing disk
*Rotor/stator
*Screw agitator
*Combination of agitators
*High shear mixer
*Turbo mixer
*Side entry agitator
*Static mixer
*External homogenizer
...
Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
Stirrer Inside The Tank We Have Different Types: Homogenizer, Paddle, Frame, Propeller, Anchor With Scraper ( Other Stirrer can be customized )

Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. This kind of agitator is mixing thin viscosity, such as eye drop, injection, CIP liquid, water, etc.

2, Top mechanical agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. This kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.

3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. It is mixing higher viscosity, such as sediment or viscosity oral liquid, etc.

4, Top emulsification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. This kind of agitator is mixing most high viscosity, such as suspension, oil, fat emulsification, etc.

5, Bottom emulsification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. This kind of agitator is mixing most high viscosity, such as suspension, oil, fat emulsification, etc.


We have more than one hundred different types of mixers to meet your product process.


Application:
1. Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2. Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc.
3. Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5. Chemical: Paints, Pigments, dyes, photo solvents, Rubber and resin, pesticides, Shoe polish, general chemicals etc.
Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer

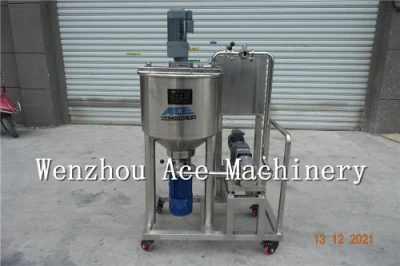

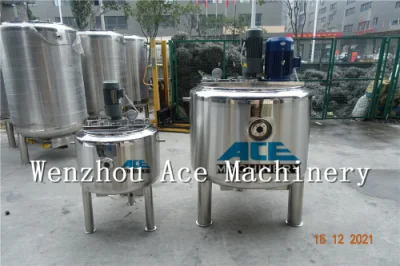

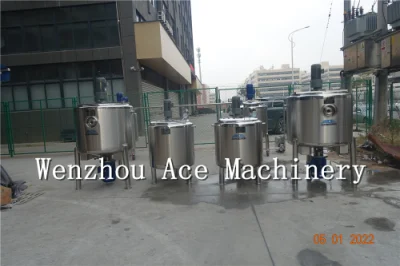

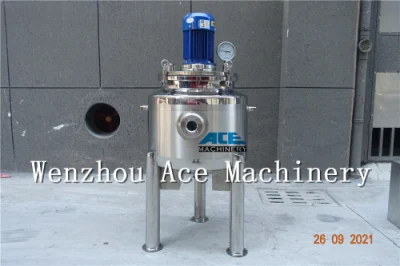

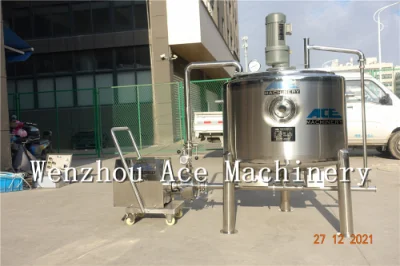

Detailed Photos



Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
Certifications

Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer

Packaging & Shipping

Best Price 1000L Face Cream Emulsion Ketchup Chilli Paste Mayonnaise Making Machine Vacuum Homogenizer
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What are your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend, and we sincerely do business and make friends with them, no matter where they come from.
