Overview

Basic Info.

Model NO.
JD-LM90-900
Application
Packaging Paper, Film Material, Color Printing, Soft Board, Plastic Woven Bag
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
BOPP/Paper/PVC/Woven Bag
Plastic Film Mulching Modes
Hot Laminating
Performance
Waterproof
Laminating Width
300-800mm
Laminating Thickness
0.008-0.02mm
Laminating Line Speed
20-220m/Min
Maximum Extrusion Volume
200kg/H×2
Total Weight
22t
Machine Features
Plastic Extrusion Casting
Transport Package
Cabinet Installation, Covered with Waterproof Film
Specification
18m× 9m× 3m
Trademark
Jingdong machine
Origin
Shantou City, Guangdong Province
HS Code
8477800000
Production Capacity
2 Units/Month

Packaging & Delivery

Package Size
1800.00cm * 900.00cm * 300.00cm
Package Gross Weight
25000.000kg

Product Description

Jingdong OEM laminator printing digital profile wrapping PVC Plastic extrusion double-sided film coating composite unit High speed woven bag laminating machine

Product Description

JD-LM90-900 plastic extrusion laminator is a high-speed multifunctional equipment widely used in the PP woven bag production industry. This machine adopts a dual host, dual mold, and dual composite roller design, using polyethylene or polypropylene as raw materials, and is extruded to complete double-sided lamination with the substrate cylinder woven fabric in one production process. The main advantage of this device is to make single or double-sided packaging bags with BOPP, PET, and non-woven fabrics.

A key feature of this machine is its ability to perform automatic substrate replacement, automatic tension adjustment, speed synchronization operation, and double-sided BOPP automatic tracking and color matching, automatic switching of rolls, waste edge recycling, and other functions when the machine is running at 220M/MIN. The machine can ensure seamless product lamination process and produce consistent and reliable products. This is crucial for industries that require uniformly laminated PP woven bags.

In summary, the JD-LM90-900 plastic extrusion double-sided layer press is a valuable asset in the woven bag production industry. Its unique structure improves efficiency, reduces energy consumption, and ensures the stability of product quality, which can elevate your product to new heights. With the continuous development of the industry, this machine will undoubtedly play an important role in meeting the growing demand of the market.

In addition, our JD-LM105-1650 plastic single-layer extrusion double-sided layer press has a more compact structure and the same functions as JD-LM90-900; There is also an economical machine JD-FE105-900 plastic single-layer extrusion double-sided lamination press that is a good choice. Different lamination structures can obtain very few coatings to meet your different product needs.



Product Parameters
Laminating Width 300-800(mm)

Laminating Thickness 0.008-0.02(mm)

 Laminating Line Speed 20-220m/min
screw diameter Φ90
 L/D 33:1
screw speed 100r/min
Maximum extrusion volume 200kg/h×2
 Roller Effecive Length 900(mm)
 Die Head Length 1000(mm)
Max Dia Of Unwinder 1500(mm)
Rewinding and unwinding steel core 3" pneumatic shaft or mechanical shaft is optional
Unwinding automatic deviation correction stroke ±100(mm)
Main motor power of extruder 22(kw)
Total power 150(kw)
Power supply 380v/220v 50hz
Three-phase four-wire
Air flow (m3/min)
(Pneumatic and cold water users should prepare by themselves)
0.6
Total water supply 0.5m3/min softened water(pressure 0.25-0.4 mPa)
Overall dimensions

18×9×3(m)
Total Weight 22 tons

Suitable material "Boucle: 50-120g/m2 cylindrical or sheet woven fabric
Film base: 12-25μm printed BOPP film
Extrusion material: film-grade PE, PP"
Machine color Computer color + dark gray
Machine type Left and right models (left mobile phone: on the operating surface facing the extruder, the left hand side is for placing cloth, the opposite is the right mobile phone)

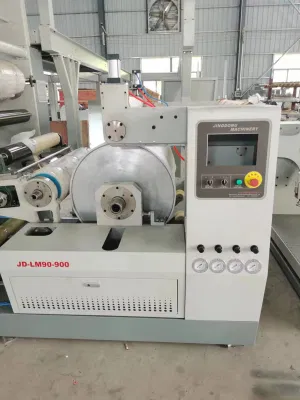

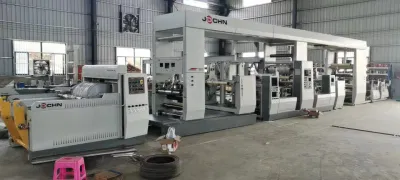

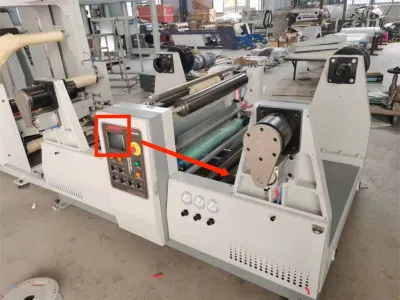

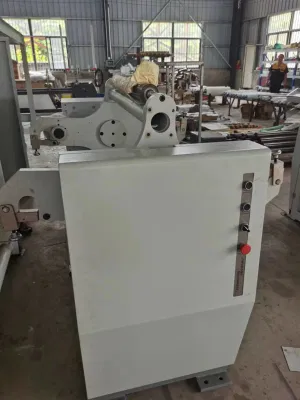

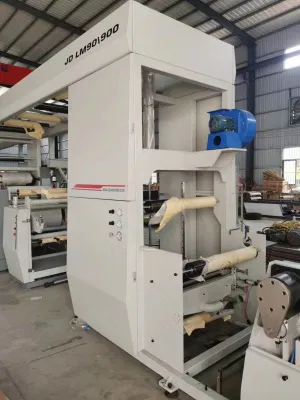

Detailed Photos



Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine

Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine
Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine
Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine



Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine
Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine



Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine


Jingdong OEM Laminator Printing Digital Profile Wrapping PVC Plastic Extrusion Double-Sided Film Coating Composite Unit High Speed Woven Bag Laminating Machine
  Suitable for cutting and sewing all kinds of market bags, fertilizer bags, rice bags, and express paper and plastic bags, it is a one-time processing equipment to complete the whole roll of woven bags to finished products. The machine integrates cutting and automatic edge folding (paper wrapping), automatic sewing, printing and automatic material collection into one machine. With the characteristics of fast speed, easy operation and convenient maintenance, it is the ideal equipment pursued by all kinds of market bags and fertilizer bags manufacturers.
