Basic Info.
Model NO.
Delta servo motor
Starting Mode
Variable Frequency Starting
Certification
CCC, CE
Brand
Delta
Rated Power
750W
Applicable Scenarios
CNC Lathe, Engraving Machine
Excitation Method
Permanent Magnet Type
Rotation Angle
360 Degrees
Transport Package
Original Boxes
Specification
1KG-50KG
Trademark
Delta
Origin
China
HS Code
8537101190
Production Capacity
100000PCS/Year
Product Description

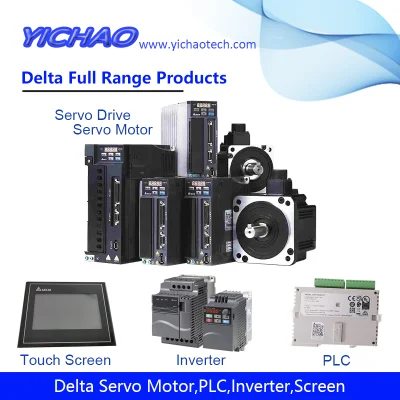

We can supply High Quaility Delta AC Servo Drive&Motor,Delta inverter,Delta PLC,Delta Touch Screen at good price, please feel free to contact us!

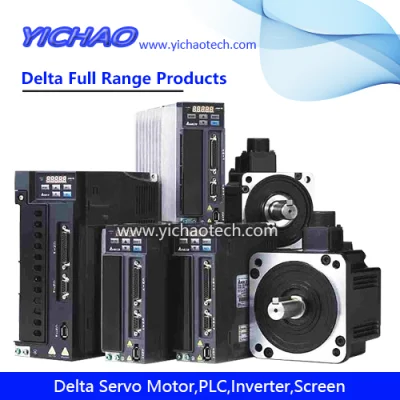

Servo Motor/Servo Drive
Delta Servo Drive A2 Motor 750W ASD-A2-0721-M 0721-L ECMA-C10807RSDelta Servo Motor 750WASD-B2-0721 ECMA-C20807RS(SS)/0421/1021/1521
Delta servo motor 1.5KW2.2KW3KW/ASD-B2-2023/3023-B/ECMA-F11830RSS
Delta B3 servo motor 400 750W driver ASD-B3-0721-L ECM-B3M-C20807RS1
Delta B3 Servo Motor 400W Driver ASD-B3-0421-L ECM-B3M-C20604RS1 SS1
Delta Servo Drive ASD-A2-0121 0421 0721 1021 1521 2023-M-F-L-E
Delta B3 Servo Motor 750W Driver ASD-B3-0721-L ECM-B3M-C20807RS1 SS1
Delta E3 Servo Drive Motor ASD-E3-04 0721-L ECM-E3M-C20604 0807RSE
Delta Servo Drive A2 Motor 400W ASD-A2-0421-M-L-E ECMA-CA0604RS (SS)
Delta servo motor ECMA drive 380V/ASD-A2-4543-M/3043/5543/3/4.5/5.5KW
Delta servo motor ECMA drive EtherCAT/ASD-A2-04/07/10/1521-E/400W750W
Delta Servo Drive A2 Series ASD-A2-0221-F ASD-A2-0421-M New Original Authentic

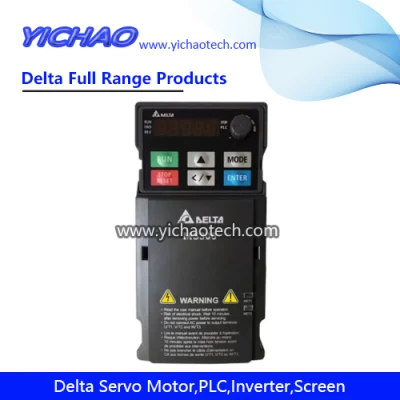

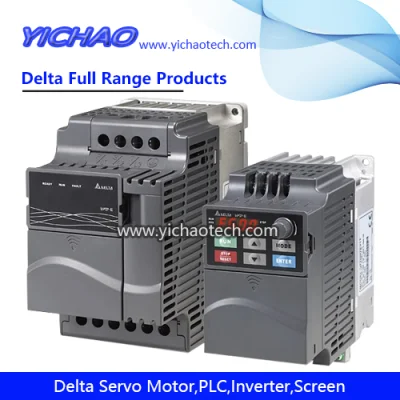

Delta Inverter
VFD-E series 0.4KW/0.75/1.5/2.2/3.7/5.5/7.5KW220V380V
MS300 series 0.4KW 0.75 1.5 2.2 3.7 5.5 7.5KW380V
VFD-M0.75/1.5/2.2KW3.7 7.5.5 220V380V motor
C2000 series 7.5KW11 18.5 22 30 37 45 55 75KW three-phase 380V
VFD075/110/150/185/220/300/370/450CP43B-21 fan water pump
Inverter VFD-EL0.4KW/0.75/1.5/2.2/3.7/5.5/7.5KW220V380V
Inverter VFD007B43A B series 0.75KW 1.5KW 2.2KW 3.7KW~75KW
Delta inverter VFD-EL series 0.4KW/0.75/1.5/2.2/3.7KW220V380V
Delta L Inverter VFD-L0.4KW 0.75 1.5 2.2KW Kilowatt 220V Original Authentic
Inverter E series panel KPE-LE02 KEP-LEO2 Delta VFD-E panel

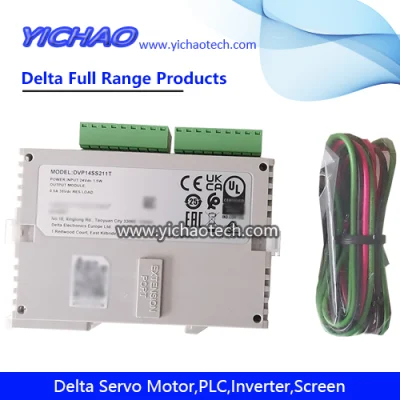

PLC Controller
EC3/DVP10/14/16/20/24/30/32/40/60EC00R3/EC00T3
Delta ES2 series limited to PLC/DVP16/24/32/40/58/60ES200R/DVP40ES200T/211T
ES series DVP14/20/24/30/32/40/60/ES00R2/T2
Delta EH3 new PLC/DVP16/24/32/40/58/60EH00R3/DVP40EH00T3/EH00M3

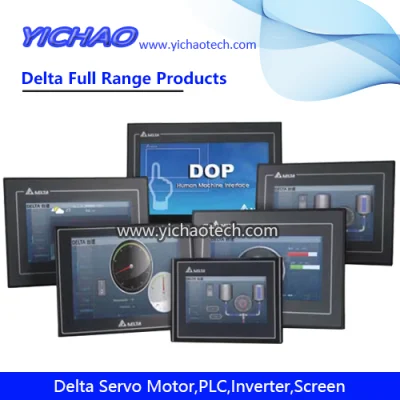

Touch Screen
7-inch man-machine interface DOP-107BV replaces B07SS411/107CV/EV/110CS
Delta touch screen 7 inch DOP-107BV man-machine interface 10 inch DOP-110CS DOP-107CV/EV/WV
Delta Inverter Standard specifications
| 115V Series Specifications | |||
| Model VFD-___E | 2 | 4 | 7 |
| Applicable motor power (kW) | 0.2 | 0.4 | 0.75 |
| Applicable motor power (HP) | 0.25 | 0.5 | 1 |
| Rated output capacity (kVA) | 0.6 | 1 | 1.6 |
| Rated output current (A) | 1.6 | 2.5 | 4.2 |
| Maximum output voltage (V) | Three phases correspond to twice the input voltage | ||
| Output frequency range (kHZ) | 0.1~600HZ | ||
| Cutting frequency range (kHZ) | 1-15 | ||
| Input Current | single phase power | ||
| 6 | 9 | 18 | |
| Rated voltage·frequency | single phase power100-120V 50/60Hz | ||
| Allowable input voltage variation range | ±10%(90-132V) | ||
| Allowable Power Frequency Variation | ±5%(47-63Hz) | ||
| cooling system | Natural cooling | Forced cooling | |
| Weight (kg) | 1.2 | 1.2 | 1.2 |
| 230V series specification | ||||||||||
| Model VFD-___E | 002 | 004 | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 |
| Applicable motor power (kW) | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 |
| Applicable motor power (HP) | 0.25 | 0.5 | 1 | 2.0 | 3.0 | 5.0 | 7.5 | 10 | 15 | 20 |
| Rated output capacity (kVA) | 0.6 | 1 | 1.6 | 2.9 | 4.2 | 6.5 | 9.5 | 12.5 | 17.1 | 25 |
| Rated output current (A) | 1.6 | 2.5 | 4.2 | 7.5 | 11.0 | 17 | 25 | 33 | 45 | 65 |
| Maximum output voltage (V) | Three-phase corresponding input voltage | |||||||||
| Output frequency range (kHZ) | 0.1~600HZ | |||||||||
| Cutting frequency range (kHZ) | 1-15 | |||||||||
| Input Current | Single-phase/three-phase power supply | Three-phase power | ||||||||
| 4.9/1.9 | 6.5/2.7 | 9.7/5.1 | 15.7/9 | 24/15 | 20.6 | 26 | 34 | 48 | 70 | |
| Rated voltage·frequency | Single-phase/three-phase power 200-240V 50/60Hz | Three-phase power 220-210V 50/60Hz | ||||||||
| Allowable input voltage variation range | ±10%(180-264V) | |||||||||
| Allowable Power Frequency Variation | ±5%(47-63Hz) | |||||||||
| cooling system | Natural cooling | Forced cooling | ||||||||
| Weight (kg) | 1.1 | 1.1 | 1.1 | 1.9 | 1.9 | 1.9 | 3.5 | 3.5 | 3.57 | 6.6 |
| 460V series specifications | |||||||||||
| Model VFD-___E | 004 | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 |
| Applicable motor power (kW) | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Applicable motor power (HP) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.5 | 10 | 15 | 20 | 25 | 30 |
| Rated output capacity (kVA) | 1.2 | 2.0 | 3.3 | 4.4 | 6.8 | 9.9 | 13.7 | 18.3 | 24 | 29 | 34 |
| Rated output current (A) | 1.5 | 2.5 | 4.2 | 5.5 | 8.5 | 13 | 18 | 24 | 32 | 38 | 45 |
| Maximum output voltage (V) | Three-phase corresponding input voltage | ||||||||||
| Output frequency range (kHZ) | 0.1~600HZ | ||||||||||
| Cutting frequency range (kHZ) | 1-15 | ||||||||||
| Input Current | Single-phase/three-phase power supply | Three-phase power | |||||||||
| 1.9 | 3.2 | 4.3 | 7.1 | 11.2 | 14 | 19 | 26 | 35 | 41 | 49 | |
| Rated voltage·frequency | Three-phase power 380-48V 50/60Hz | ||||||||||
| Allowable input voltage variation range | ±10%(180-264V) | ||||||||||
| Allowable Power Frequency Variation | ±5%(47-63Hz) | ||||||||||
| cooling system | Natural cooling | Forced cooling | |||||||||
| Weight (kg) | 1.2 | 1.2 | 1.2 | 1.9 | 1.9 | 4.2 | 4.2 | 4.2 | 7.47 | 7.47 | 7.47 |
