Basic Info.
Colour
Customized
Strands
3/4/8/12/16/32
Application
Fishing
Transport Package
PP Bag
Specification
Polypropylene
Trademark
HaiLun
Origin
China Mainland
HS Code
5607490000
Production Capacity
8000 Tons
Product Description
PP MULTIFIAMNET ROPE
This product is made of high quality polypropylene (PP) raw materials, through drawing, twisting line, making stock, and weaving together four processes.
The characteristics of rope light specific gravity, high strength, very efficient in the vessel operation, the highest utilization rate is the cable on the market the product, its tensile strength higher than that of polyethylene (PE) rope, has good wear resistance, ,chemical corrosion resistance, UV resistance.
Our company can produce super high - strength polypropylene rope, and the tensile strength is 20%~30% of ordinary polypropylene rope.
Application: ship mooring, towing, Marine fishing, Marine breeding, etc.
Details introduction
Density: 0.97 g/cm3 (floating in the water)
Melting point: 168 ° C
Elongation at break: 17 ~ 21%
Anti-UV: Good
Resistance to wear:Very Good
Chemical resistance:Very Good
8-strand Rope Parameter Table
12-strand Rope Parameter Table
Certificates
Packing

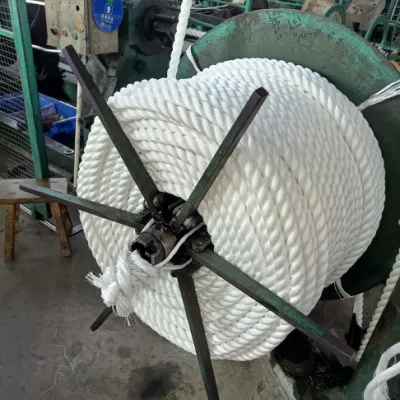

Workshop Picture
This product is made of high quality polypropylene (PP) raw materials, through drawing, twisting line, making stock, and weaving together four processes.
The characteristics of rope light specific gravity, high strength, very efficient in the vessel operation, the highest utilization rate is the cable on the market the product, its tensile strength higher than that of polyethylene (PE) rope, has good wear resistance, ,chemical corrosion resistance, UV resistance.
Our company can produce super high - strength polypropylene rope, and the tensile strength is 20%~30% of ordinary polypropylene rope.
Application: ship mooring, towing, Marine fishing, Marine breeding, etc.
Details introduction
Density: 0.97 g/cm3 (floating in the water)
Melting point: 168 ° C
Elongation at break: 17 ~ 21%
Anti-UV: Good
Resistance to wear:Very Good
Chemical resistance:Very Good
8-strand Rope Parameter Table
| mm Dia | Circ | Weight | Breaking Strength | |||
| mm | Inch | Inch | KGS/100M | LBS/100FT | Ton | kN |
| 24 | 15/16 | 3 | 26.0 | 17.5 | 8.13 | 79 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 23.9 | 10.7 | 104 |
| 32 | 1-1/4 | 4 | 46.0 | 31.0 | 13.5 | 132 |
| 36 | 1-7/16 | 4-1/2 | 59.0 | 39.7 | 17.04 | 167 |
| 40 | 1-9/16 | 5 | 72.0 | 48.4 | 20.82 | 204 |
| 44 | 1-3/4 | 5-1/2 | 88.0 | 59.2 | 24.8 | 243 |
| 48 | 1-7/8 | 6 | 104.0 | 69.9 | 29.18 | 286 |
| 52 | 2-1/16 | 6-1/2 | 122.0 | 82.0 | 33.88 | 332 |
| 56 | 2-1/4 | 7 | 142.0 | 95.4 | 38.88 | 381 |
| 60 | 2-3/8 | 7-1/2 | 163.0 | 109.6 | 44.18 | 433 |
| 64 | 2-1/2 | 8 | 185.0 | 124.3 | 49.8 | 488 |
| 68 | 2-11/16 | 8-1/2 | 209.5 | 140.8 | 55.92 | 548 |
| 72 | 2-7/8 | 9 | 234.0 | 157.3 | 62.04 | 608 |
| 80 | 3-5/32 | 10 | 289.0 | 194.2 | 75.71 | 742 |
| 85 | 3-7/16 | 10-1/2 | 328.5 | 220.7 | 85.20 | 835 |
| 88 | 3-9/16 | 11 | 351.0 | 235.9 | 90.92 | 891 |
| 90 | 3-3/4 | 11-1/4 | 367.5 | 246.6 | 94.98 | 930 |
| 96 | 3-13/16 | 12 | 417.0 | 280.2 | 107.14 | 1050 |
| 100 | 3-15/16 | 12-1/2 | 453.5 | 304.7 | 115.82 | 1135 |
| 104 | 4-1/8 | 13 | 490.0 | 329.3 | 124.49 | 1220 |
| 112 | 4-7/16 | 14 | 570.0 | 383.1 | 141.84 | 1390 |
| 120 | 4-3/4 | 15 | 651.0 | 437.4 | 164.29 | 1610 |
12-strand Rope Parameter Table
| mm Dia | Circ | Weight | Breaking Strength | |||
| mm | Inch | Inch | KGS/100M | LBS/100FT | Ton | kN |
| 24 | 15/16 | 3 | 26.0 | 17.5 | 8.3 | 89 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 23.9 | 10.9 | 118 |
| 32 | 1-1/4 | 4 | 46.0 | 30.9 | 13.8 | 148 |
| 36 | 1-7/16 | 4-1/2 | 58.6 | 39.4 | 17.9 | 175 |
| 40 | 1-9/16 | 5 | 71.8 | 48.3 | 21.5 | 211 |
| 44 | 1-3/4 | 5-1/2 | 88.1 | 59.2 | 25.8 | 253 |
| 45 | 1-25/32 | 5-5/8 | 92.0 | 61.8 | 26.93 | 264 |
| 48 | 1-7/8 | 6 | 104.0 | 69.9 | 30.1 | 295 |
| 50 | 2 | 6-1/4 | 113.0 | 76.0 | 32.45 | 318 |
| 52 | 2-1/16 | 6-1/2 | 122.0 | 82.0 | 34.8 | 341 |
| 56 | 2-1/4 | 7 | 142.0 | 95.4 | 39.6 | 388 |
| 60 | 2-3/8 | 7-1/2 | 163.0 | 109.6 | 45.4 | 445 |
| 64 | 2-1/2 | 8 | 185.0 | 124.3 | 51.3 | 503 |
| 65 | 2-9/16 | 8-1/8 | 191.1 | 128.4 | 52.96 | 519 |
| 70 | 2-3/4 | 8-3/4 | 221.7 | 149.0 | 61.32 | 601 |
| 72 | 2-7/8 | 9 | 234.0 | 157.3 | 64.6 | 633 |
| 75 | 3 | 9-3/8 | 255.3 | 171.6 | 70.1 | 687 |
| 80 | 3-5/32 | 10 | 291.0 | 195.6 | 79.4 | 778 |
| 85 | 3-3/8 | 10-5/8 | 328.5 | 220.7 | 89.28 | 875 |
| 88 | 3-7/16 | 11 | 351.0 | 235.9 | 95.2 | 933 |
| 90 | 3-9/16 | 11-1/4 | 367.5 | 247.0 | 99.7 | 977 |
| 95 | 3-3/4 | 11-7/8 | 408.7 | 274.7 | 111.0 | 1088 |
| 96 | 3-13/16 | 12 | 416.0 | 279.6 | 113.3 | 1110 |
| 100 | 3-15/16 | 12-1/2 | 453.5 | 304.7 | 121.0 | 1185 |
| 104 | 4-1/8 | 13 | 486.0 | 326.6 | 128.6 | 1260 |
| 112 | 4-7/16 | 14 | 568.0 | 381.7 | 149.0 | 1460 |
| 120 | 4-3/4 | 15 | 651.0 | 437.5 | 170.4 | 1670 |
Certificates
Packing
Workshop Picture
