Product Description

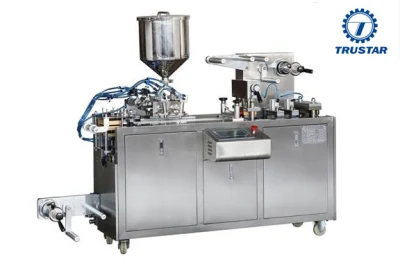

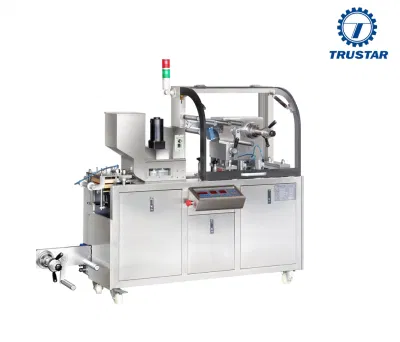

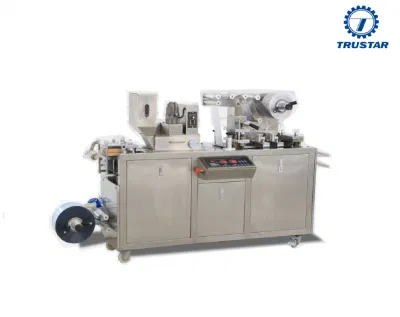

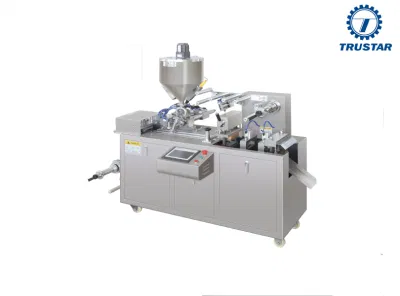

DPP-80 multi-functional automatic aluminum-plastic blister packaging machine, this machine is innovative design of the company's comprehensive domestic and foreign aluminum-plastic packaging machine. The key parts of the machine adopt many innovative technologies of our company, and the contact with drugs is adopted. Made of stainless steel and high-grade aluminum alloy materials, it is suitable for packaging tablets, sugar-coated tablets and capsules in the pharmaceutical, food and health care industries. It can also package small pieces of food, hardware parts and electronic components. The machine integrates ten functions such as coil unwinding, aluminum-plastic (aluminum-aluminum) feeding, blister forming, filling, scrap recycling, heat sealing, printing batch number, textured indentation, plate punching, and display finished product counting. The packaged articles are well sealed, safe and hygienic.
| Model | DDP-150 |
| Cutting Time | Alu-Pvc 10-40time/min |
| Adjustable Range of Stroke | 20-110mm(Adjustable) |
| Max. Forming Area | 70×110mm |
| Max. Forming Deep | 26mm |
| Air Pump | 0.4-0.6Mpa |
| Voltage | 380V/220V 50Hz |
| Main Power | 0.75Kw |
| PVC | 0.15-0.5×80mm |
| PTP Aluiminum | 0.02-0.035×80mm |
| Dialysis Paper | 50-100g×80mm |
| Noise | <75dBA |
| Outer Size | 1750×650×1500mm |
| Weight | 550Kg |
Product Samples
Q: Which machine suitable for me? How can I chose?
A:All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing.
If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest usingTrade Assurance Service for all transactions to protect your money and assure our service for you.
Q:How long the delivery date?
A:The small machine is 15-20days and the large machine will be 20-35 days.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. TRUSTAR highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the
machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
