Product Description

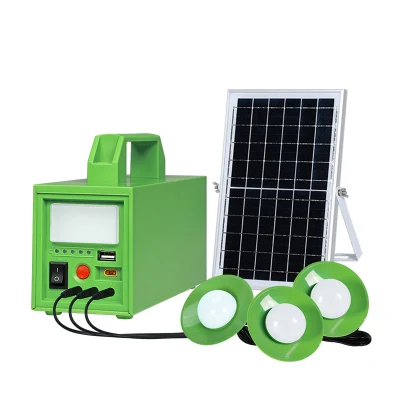

LED solar home lighting system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power.

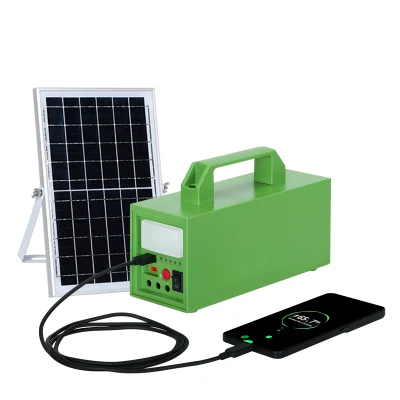

The small solar system is characterized by convenient movement, easy installation, and reliable performance, which is very suitable for situations requiring emergency power. It is the ideal, reliable energy source for many applications such as lighitng, radios, fans, TVs, computers, refrigerators. The USB port is compatible with all 5V-USB charging devices. It can also be used as a backup power source in emergency situations.
Item No. | 0285A20-01 | 0285B40-01 | 0285C60-01 |
Power | 20W | 40W | 60W |
LED Lamp | 3014 LED 18PCS 6000K | 3014 LED 18PCS 6000K | 3014 LED 18PCS 6000K |
LED Lamp | 5730 LED 36PCS 6000K | 5730 LED 36PCS 6000K | 5730 LED 36PCS 6000K |
Lamp Size | 146*77*136mm(System Host) | 166*77*136(System Host) | 226*77*136(System Host) |
Solar Panel | 6V 12W, Polycrystalline | 6V 18W, Polycrystalline | 6V 28W, Polycrystalline |
BatteryType | LiFePO4 3.2V 12AH | LiFePO4 3.2V 18AH | LiFePO4 3.2V 24AH |
USB Output | 5V 2.5A 1pcs | ||
Charging time | 6-8 hours | ||
Discharging time | 10-24 hours | ||
Lumen | 160lm/w | ||
Material | PVC+PC | ||
A. Are your inverters pure sine wave output?
Q: A Yes, All are true pure sine wave.
A: What kind of output you can do?
Q: Normally we produce inverter with 110V 115V 120V 220V 230V 240V, 50/60Hz self-adaption. If you have special requirements, please tell us for engineer consulting.
A: What' s the difference between low frequency and high frequency inverter?
Q: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
A: What's the difference between pure sine wave inverter and modified sine wave inverter?
Q: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
A: What appliances your inverters can load?
Q: Our inverter can be used in household, Office, agricultural appliances and other inductive load such as refrigerator, air conditioner, water pump, etc.
A: Can you print our company logo on inverters, nameplates and packaging?
Q: Yes, we accept OEM orders.
A: How to choose a right inverter?
Q: Tell us your demand, then our sales will recommend a suitable inverter to you.
A: How to solve the technical problem?
Q: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
A: Do I Need A Power Inverter?
Q: Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 220 or 230 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
A: What's The Difference Between 12, 24, And 48 Volt Inverters?
Q: This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.
A: What to do if the product is broken?
Q: If any product is faulty, you can send the picture or video to us, we sill study it and supply the spare parts of PCB board free for after sale service.
